สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
CANGZHOU FMS
ได้รับการรับรอง:
ISO, CE
หมายเลขรุ่น:
ตัดตามความยาว
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ

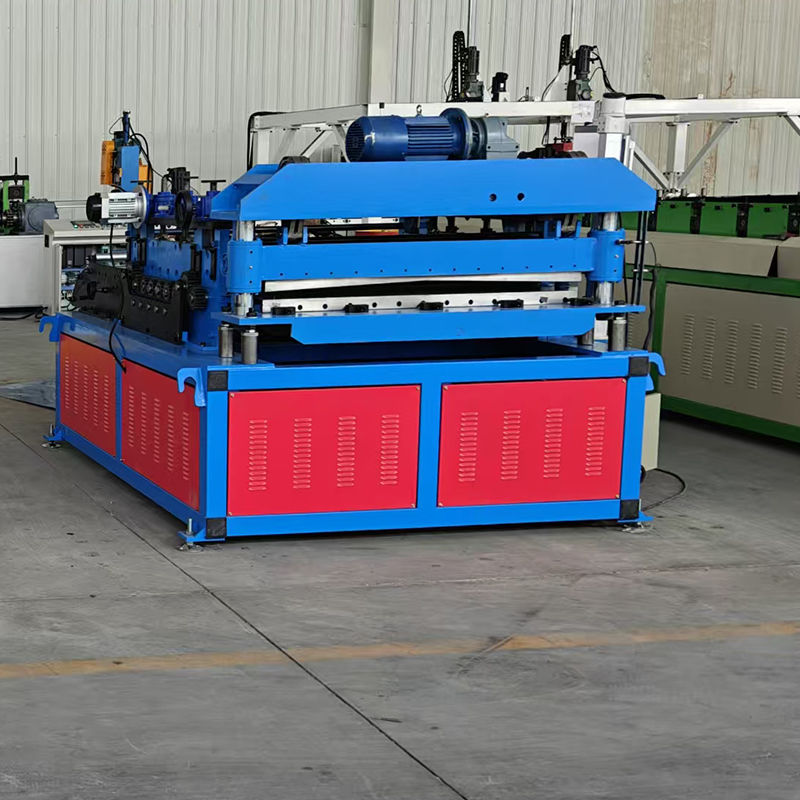

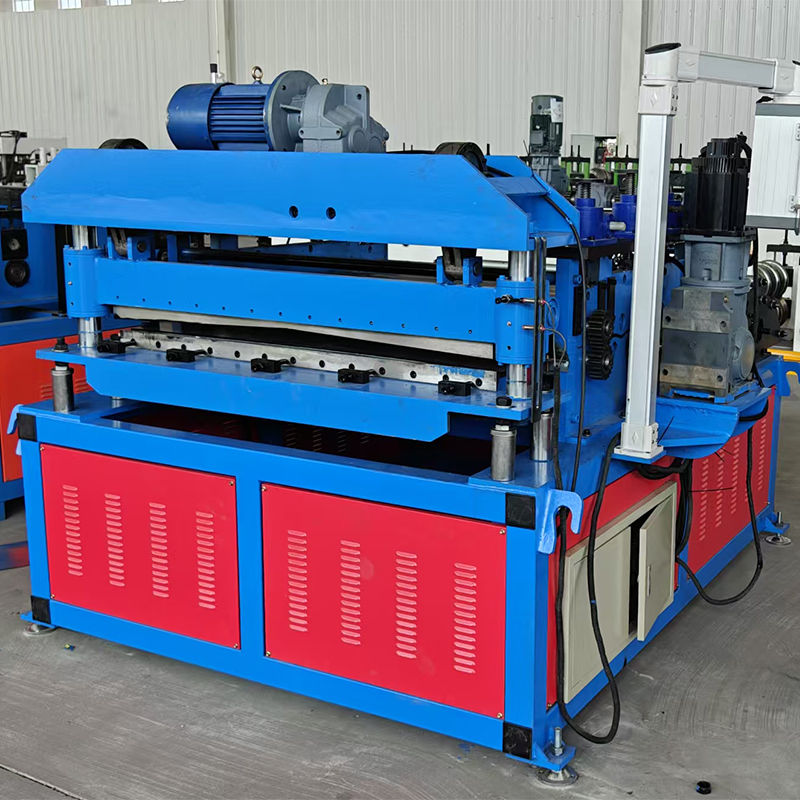

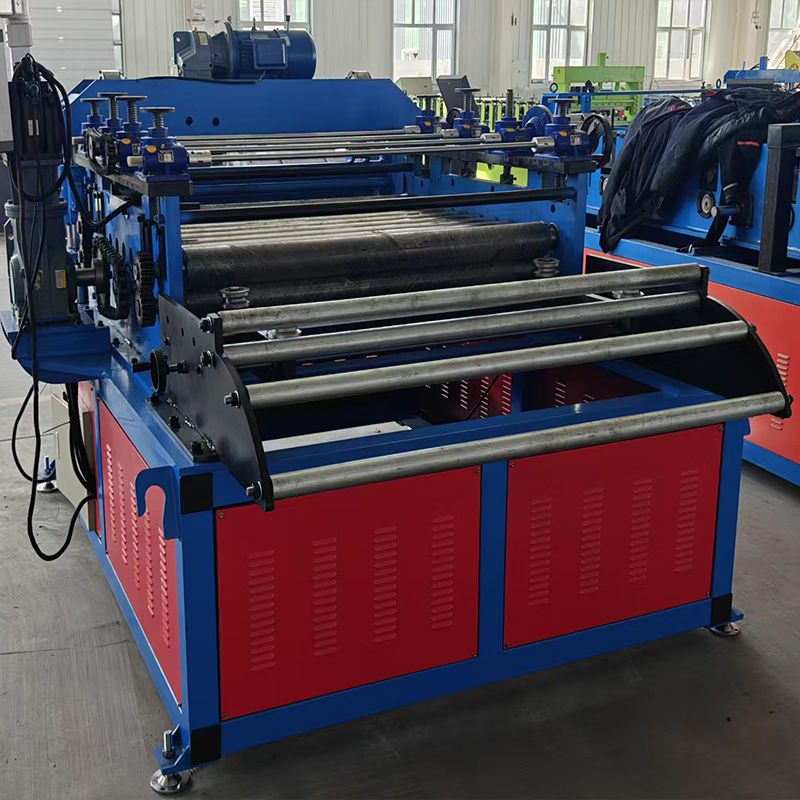

Multi-Function Metal Coil Leveling Slitting And Cut To Length
Steel Coil Cutting-to-Length Lines are integrated systems of machinery designed to process large, master coils of steel into flat sheets. This process is fundamental in metal manufacturing, transforming coiled raw material into ready-to-use flat products for various industries.
These highly automated lines handle the three primary functions: uncoiling, levelling (straightening), and cutting.
| No. | Item | Description |
|---|---|---|
| Main Specification | ||
| 1 | Raw Material | Galvanized, Aluminum, Color steel, Hardness 235MPa - 485MPa |
| 2 | Raw Material Thickness | 0.2 mm - 3.0 mm |
| 3 | Raw Material Width | 600 mm - 1600 mm |
| 4 | Tape Inner Diameter | φ 480 mm - φ 530 mm |
| 5 | Tape Outer Diameter | φ 1600 mm |
| 6 | Coil Weight | 5 tons - 10 tons |
| 7 | Brand | FMS |
| 8 | The Highest Slitting Line Speed | 8 m/min - 30 m/min |
| 9 | Minimum Cutting Line Width | 35 mm |
| 10 | Cutting Width Precision | ± 0.01 - ± 0.05 mm |
| 11 | Rated Operational Voltage | 380 V, 3 Phase, 60 Hz |
| 12 | Total Weight | 14000 KG |
| 13 | Working Space (L*W) | 20000 mm * 6000 mm |
| Decoiler Machine Specification | ||
| 1 | Tape Outer Diameter | Max φ 1600 mm |
| 2 | Tape Width | 600 mm - 1600 mm |
| 3 | Tape Inner Diameter | φ 480 mm - φ 530 mm |
| 4 | Coil Weight | 5 /7/10 tons |
| 5 | Max Working Speed | 8 m/min - 30 m/min |
| 6 | Tape Tight Range | φ 480 mm - φ 530 mm |
| 7 | Shaft Diameter | φ180 mm |
| 8 | Roller Effective Length | 1600 mm |
| 9 | Drive Motor Power | 5 KW |
| 10 | Loading Car Diameter | φ 700 mm - φ 1500 mm |
| 11 | Loading Car Weight | 5 /7/ 10 tons |
| 12 | Car Speed | About 4 m/min |
Used to cut the big coils into different width coils. The thickness can be 0.3-3mm GI PPGI, with a working speed that can reach 40 meters per minute. Maximum width of steel coils can be 1250mm.
Cangzhou Famous Cold Roll Forming Machinery is a professional manufacturer and exporter that specializes in the design, development and production of cold roll forming machines.
Located in Botou City, all products comply with international quality standards and are greatly appreciated in various markets throughout the world, including Asia, Africa, Europe, South America, and Australia.
