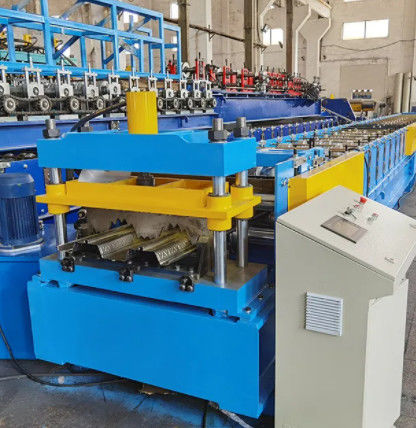

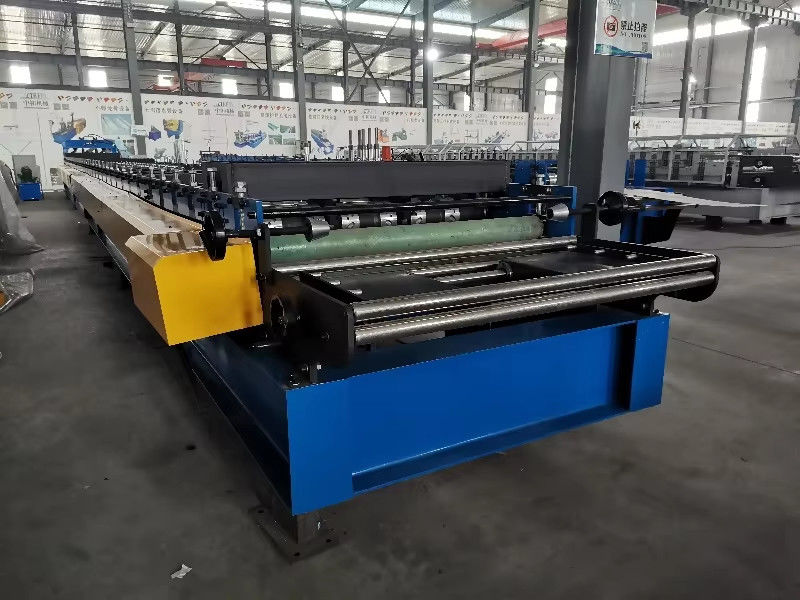

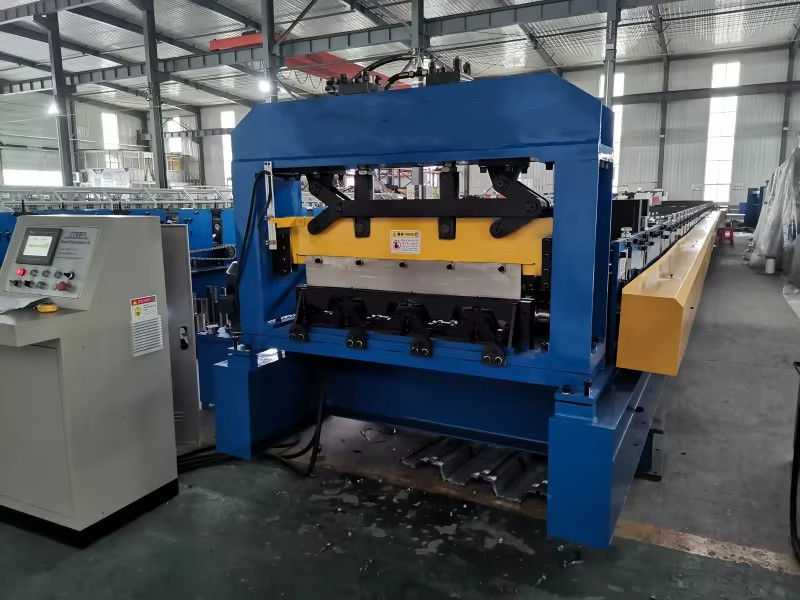

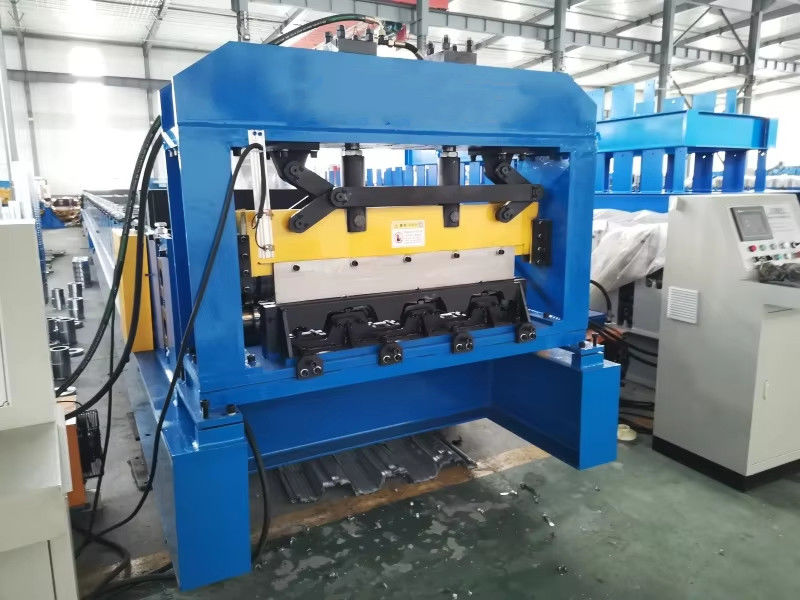

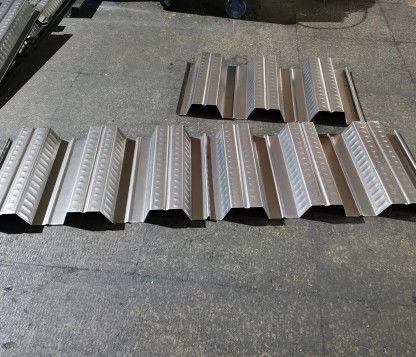

The steel floor deck roll forming machine is designed to produce high-quality steel floor decks, also known as floor bearing steel plates. These decks are used to support concrete or insulating membranes in roof and floor systems, providing a structurally efficient solution with high peak strength and low cost.
| Suitable Material | |
|---|---|
| Material Width | 1000/1250mm |
| Effective Width | 600/850/915 mm |
| Material Thickness | 0.8-1.5mm |
| Material Type | Galvanized Steel Strip, Prepainted Galvanised Steel |
| Yield Strength | 245Mpa |
| Main Machine Specifications | |
|---|---|
| Shaft Diameter | 95mm |
| Wall Panel Thickness | 18mm |
| Base Specification | H446*199 |
| Main Motor | 37KW hydraulic system |
| Forming Speed | 0-10m/min |
| Forming Station | 33 Stations |
| Blade Material | Cr12 (Die Steel) |
| Roller Material | 45# steel, CNC lathes, Heat Treated, hard Chrome Coated |
| Speed Regulation | AC Inverter Speed Regulation |
| Driving Mode | Reduction Motor + Chain Transmission |
| Cutting Mode | Hydraulic Type, Post-cutting |
| Cutting Motor | Hydra station/hydraulic motor |
| Measuring Mode | Photoelectric Encoder |
| Control Mode | PLC |
| Operation Mode | Button + Touch Screen |
| Voltage | 380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph |
| Dimension | 15M × 1.5M × 1.3M |
| Machine Weight | 16500KG (15500KG) |
